M1R M c Laren Package 1400HP Complete Build
M838T/M840T Twin-Turbo V8 *2 Year / 24,000 Mile Powertrain Warranty
Scroll
Package Overview
M1R Program

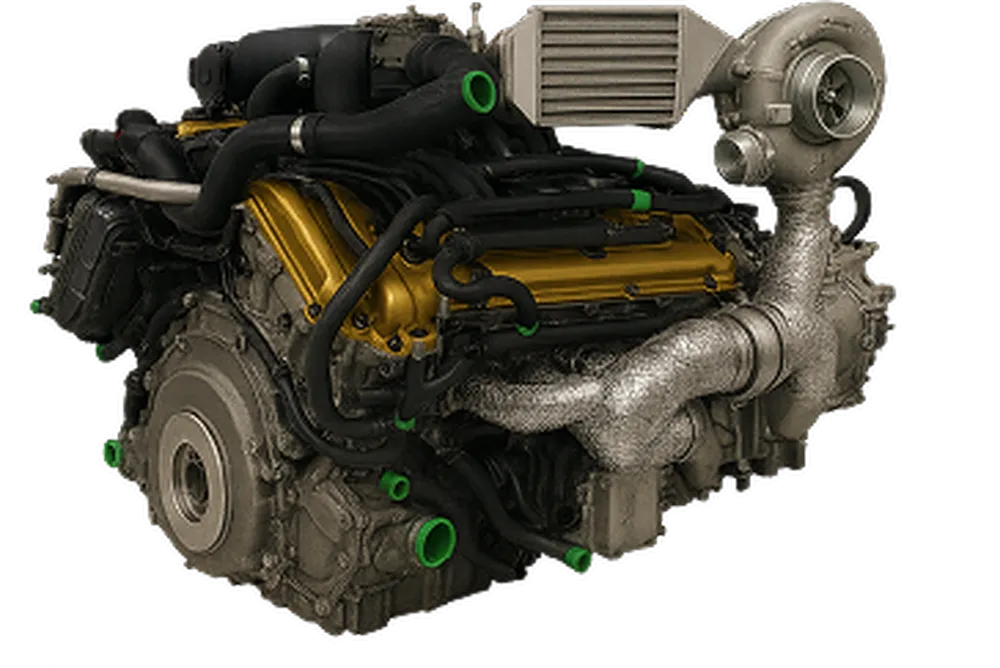

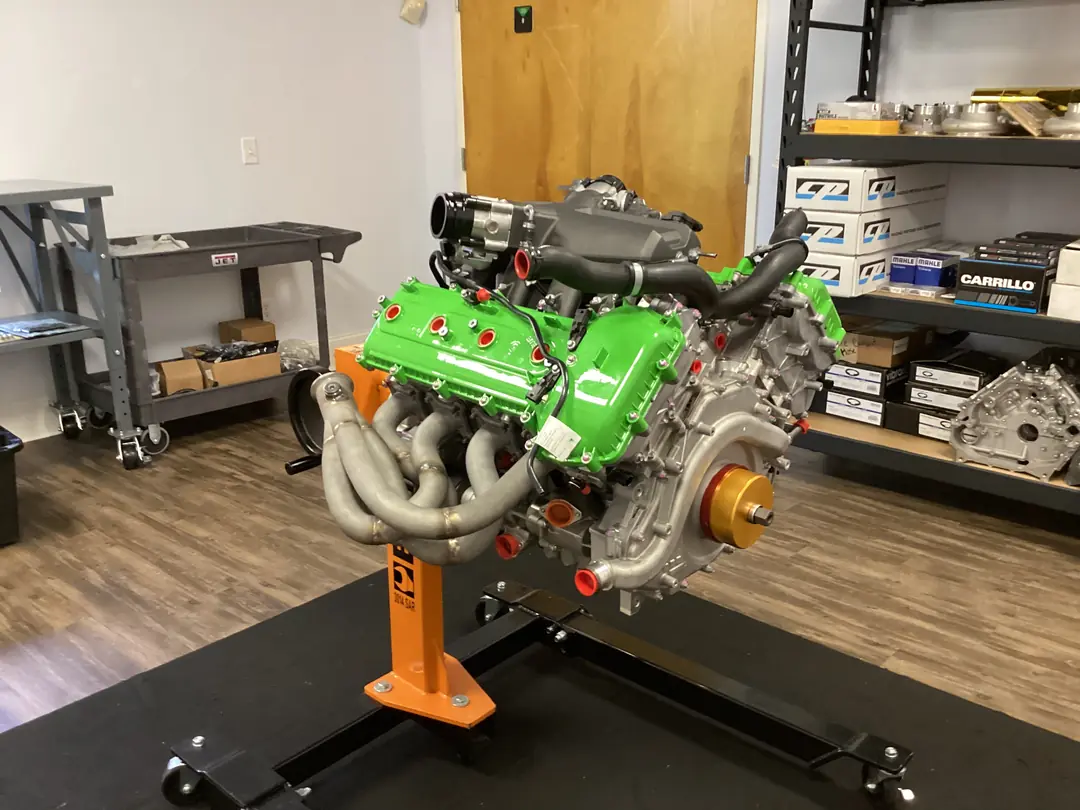

The M1R Program is a bespoke performance package developed exclusively for the McLaren P14 platform. Engineered to elevate the factory powertrain into a fully integrated high-performance system, the M1R produces approximately 950HP and 700TQ on premium unleaded fuel. When paired with the race calibration and race fuel, output increases to an exceptional 1,400HP and 890TQ.
Build Process

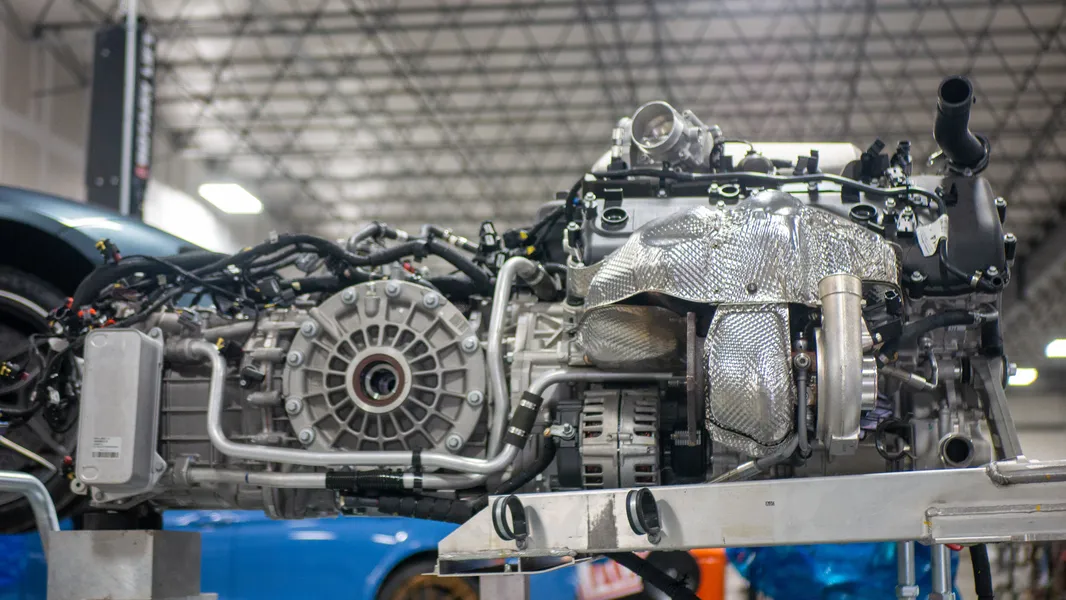

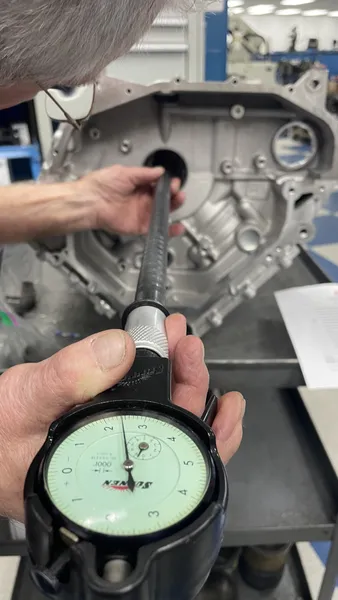

Every M1R build begins with a comprehensive vehicle detail and multi-point inspection before the engine and transmission are carefully removed by M3P's highly trained technicians. The powertrain is then fully disassembled and meticulously inspected by our machine shop, where the engine receives premium internal upgrades including CP-Carrillo billet steel connecting rods, forged aluminum CP-Carrillo pistons, CNC-machined cylinder heads, and a series of proprietary enhancements engineered to support extreme power levels while maintaining long-term reliability.

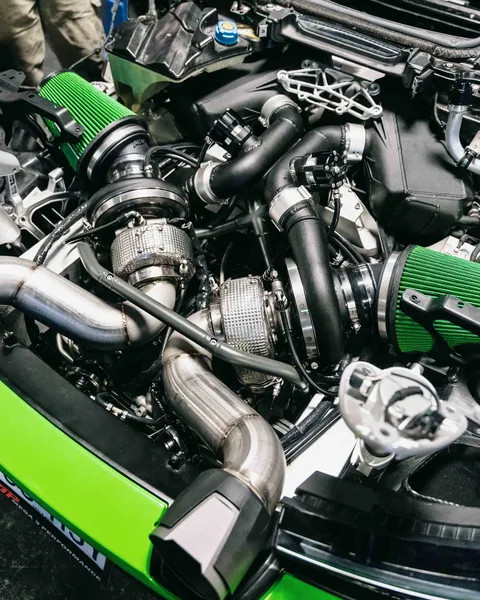

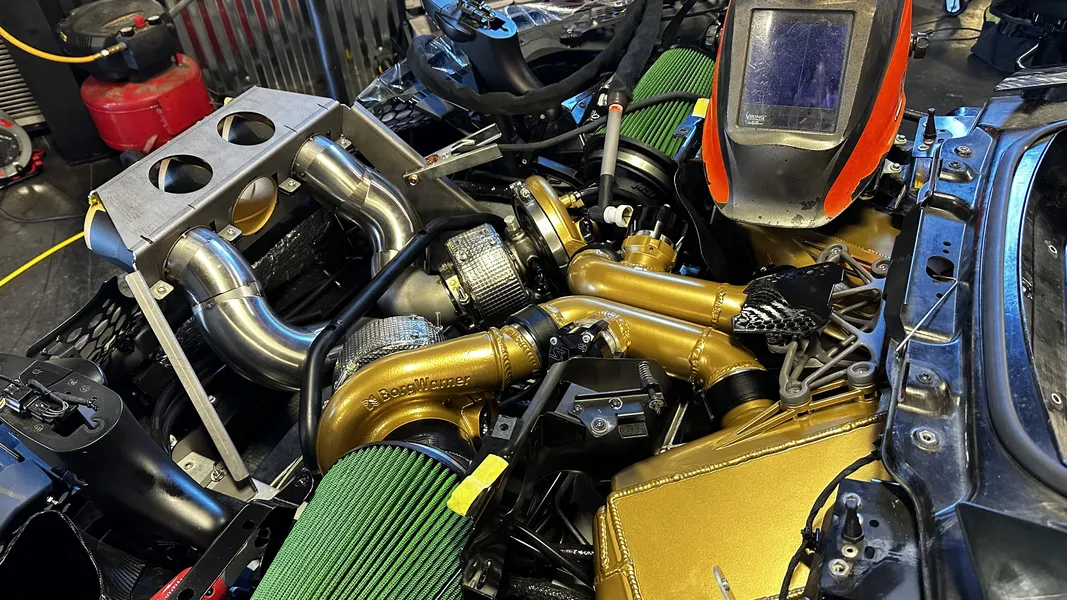

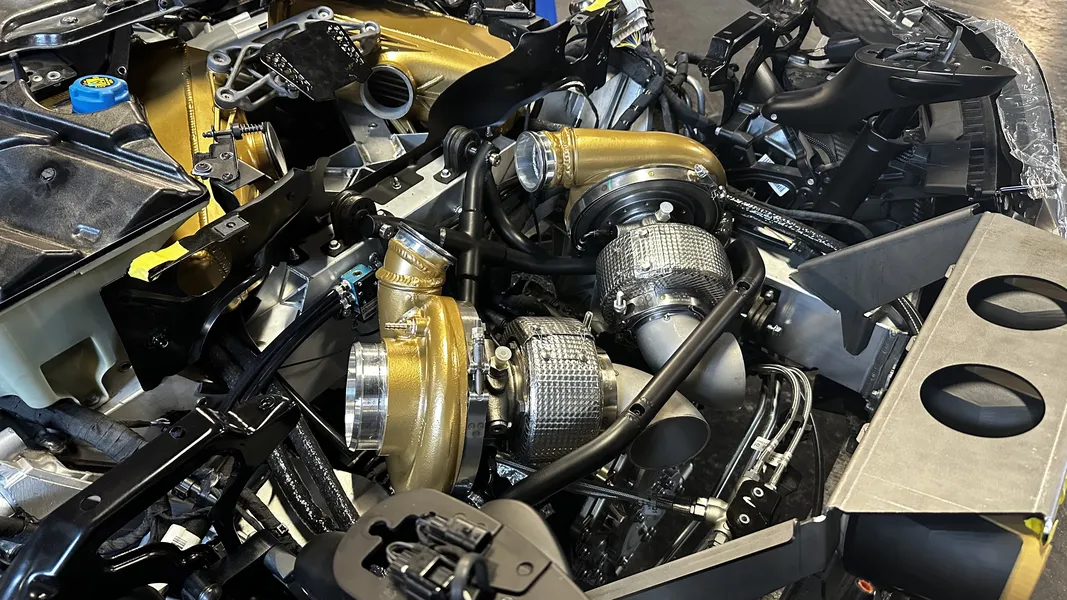

Once assembly is complete, the engine is reinstalled and paired with M3P's in-house engineered turbo system. The package features BorgWarner EFR turbochargers, upgraded wastegates, proprietary dual-pass air-to-water intercoolers with advanced internal surface features integrated into their 3D-printed AL6061 end tanks, and a fully 3D-printed Inconel exhaust system. Every component has been developed using advanced CAD modeling and high-resolution 3D scan data to maximize packaging efficiency, airflow, thermal management, and overall performance.
Extensive Computational Fluid Dynamics (CFD), Finite Element Analysis (FEA), and real-world validation testing have resulted in what we believe is one of the most advanced, efficient, and capable entry-level P14 upgrade packages available today.
To support the increased performance, the driveline and fuel system receive targeted upgrades along with ECU and TCU calibrations tailored to the selected fuel configuration.
Every M1R vehicle built by M3P is backed by a 24-month / 24,000-mile limited powertrain warranty (whichever occurs first; restrictions apply).
1 / 11
1,400 Peak Horsepower
890 Peak Torque (lb-ft)
EFR BorgWarner Turbos
S7 Syvecs PnP ECU
3-4 Month Build Time
2yr/24K Mile Powertrain warranty
What's Included
Complete Build Specification

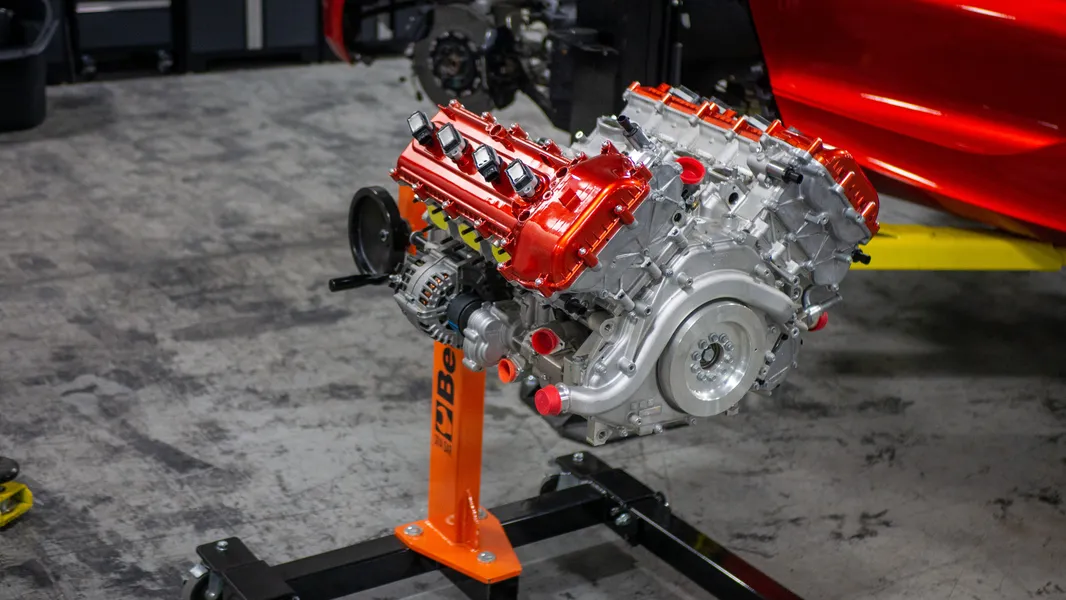

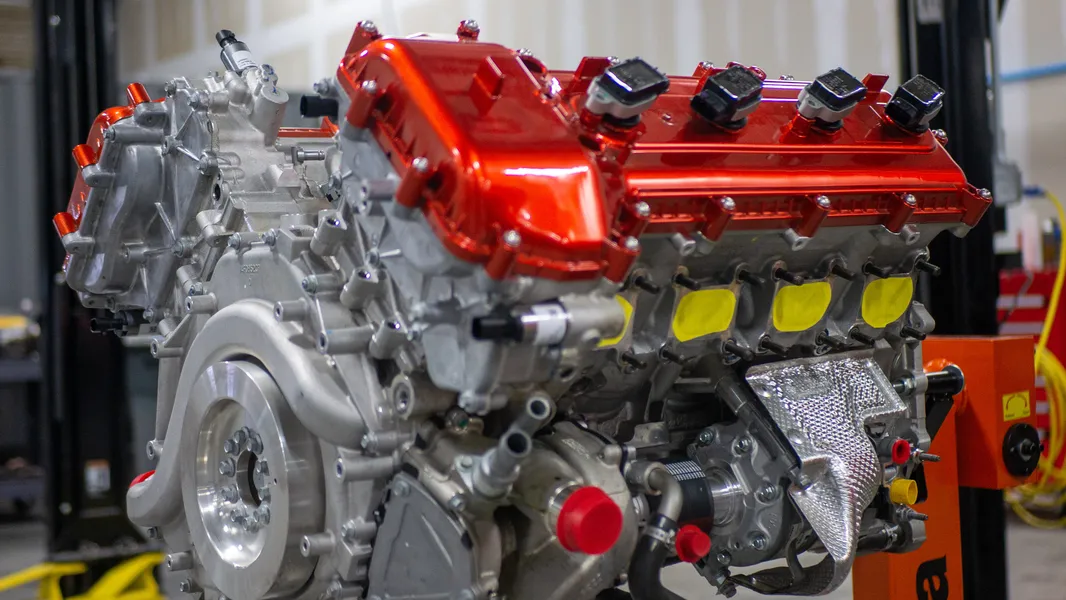

Engine Program

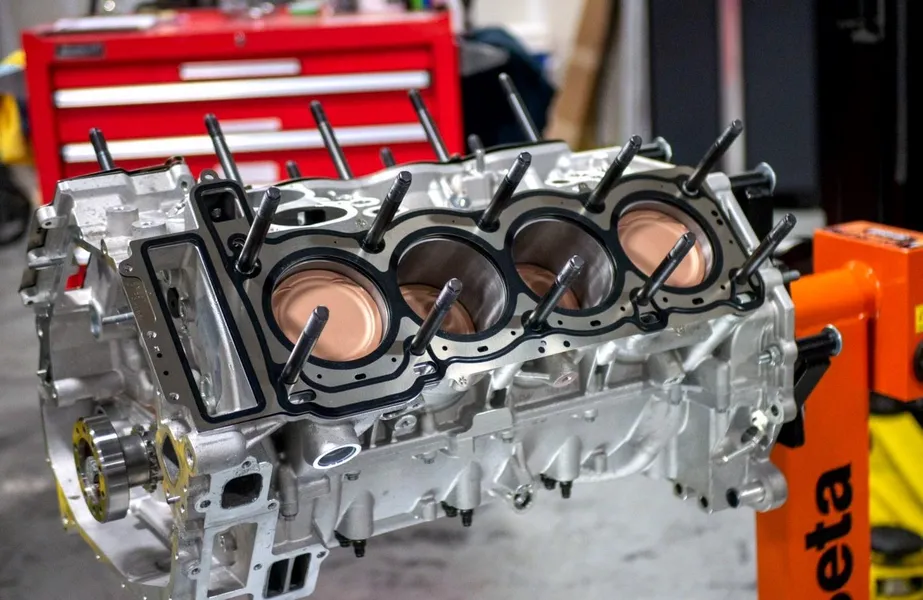

33 ComponentsShort Block

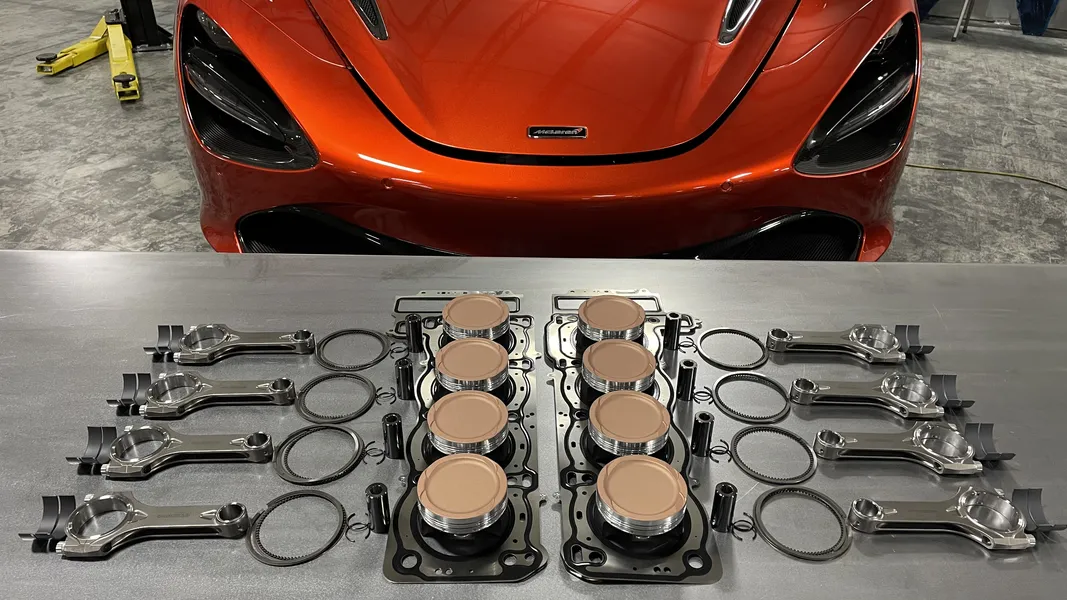

- CP-Carrillo Forged Piston Set
- CP-Carrillo CP1350 Connecting Rods
- Ceramic Crown & Moly Skirt Coating
- DLC Billet Piston Wrist Pins
- King Racing Bearings

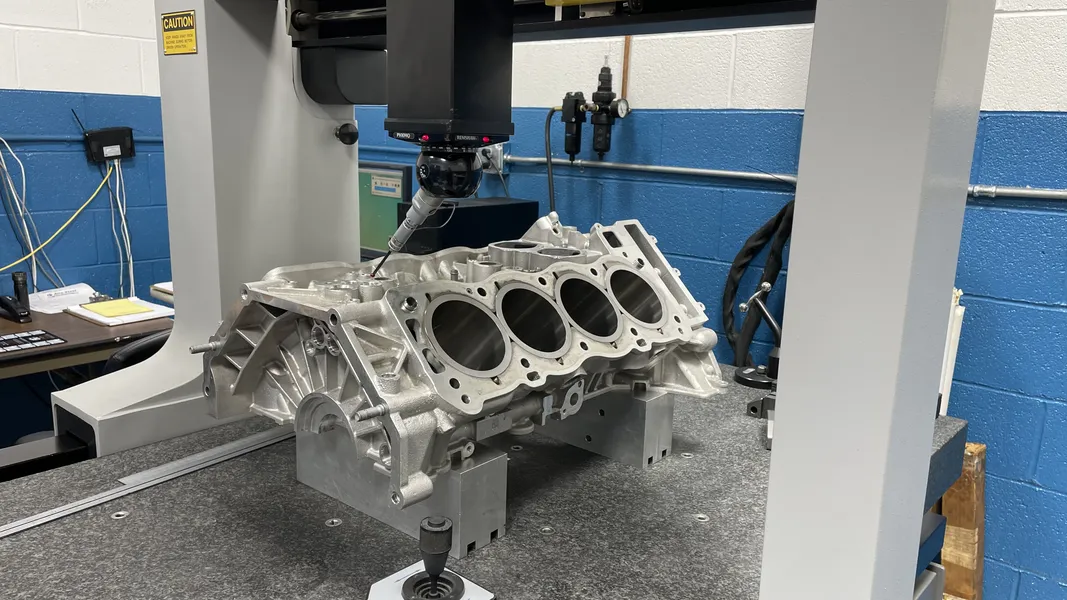

- Darton Sleeves - Torque Plate Honed
- Sunnen Line Honed Mains
- High Strength Head & Main Stud Set
- Blueprinted & Balanced Rotating Assembly

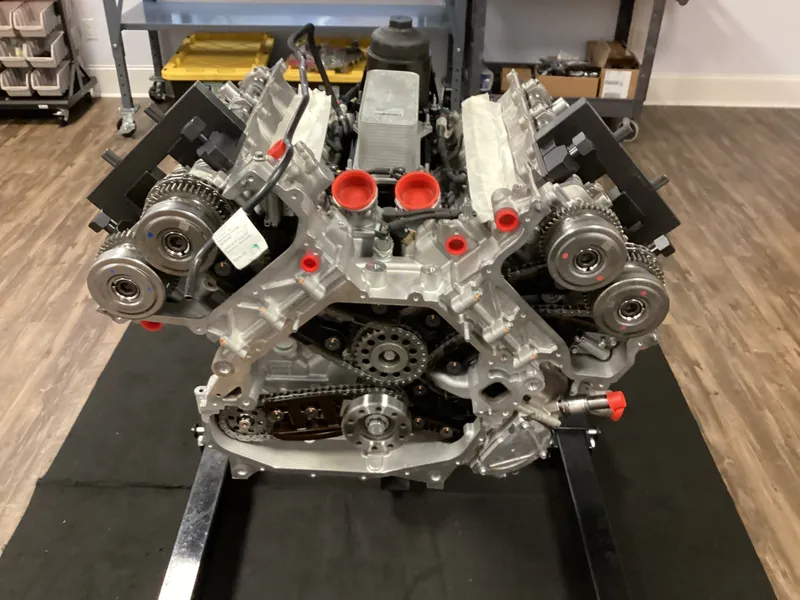

Cylinder Heads
- Cylinder Head Porting
- Valvetrain Setup
- Upgraded Valve Guides
- Upgraded Valve Springs
- New Viton Valve Seals
- New MLS Cylinder Head Gaskets
- New Cam Phaser Set
- New Timing Chain Kit
Turbo System

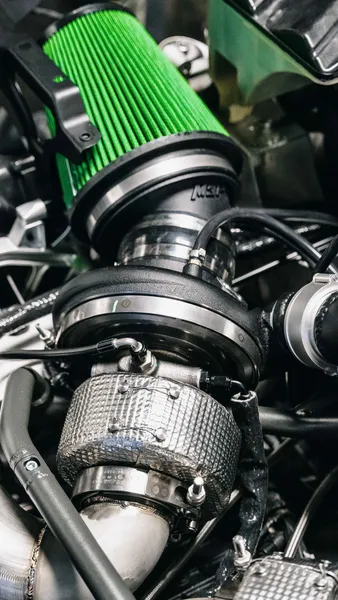

- BorgWarner EFR7670 Turbochargers
- Upgraded GFB BOV ×2
- 3D Printed AL-6061 Intercoolers
- Turbo Manifold Inconel Heat Shielding
Exhaust
- 3D Printed Inconel Exhaust Manifold
- 3D Printed Inconel Exhaust Collector
- Inconel Heat Shielding
- Heavy Duty V-Band Connections
Fuel, Intake & ECU
- Fuel System Upgrade w/ ID1050 Injectors
- NGK Racing Spark Plugs
- Upgraded Aluminum Intake Manifold
- M3P Crankcase Ventilation System
- Syvecs S7 PnP ECU
Service
- Coolant Service
- 2 Oil Services
- Professional Installation & Tuning
Transaxle Program
12 ComponentsClutch & Transmission
- Dodson Upgraded DCT Frictions
- Pentosin FFL-Racing DCT Fluid
- M3P DCT Breather / Catch Can
- New Filters
- TCU Software Upgraded w/ Motorsport Features
Differential & Drivetrain

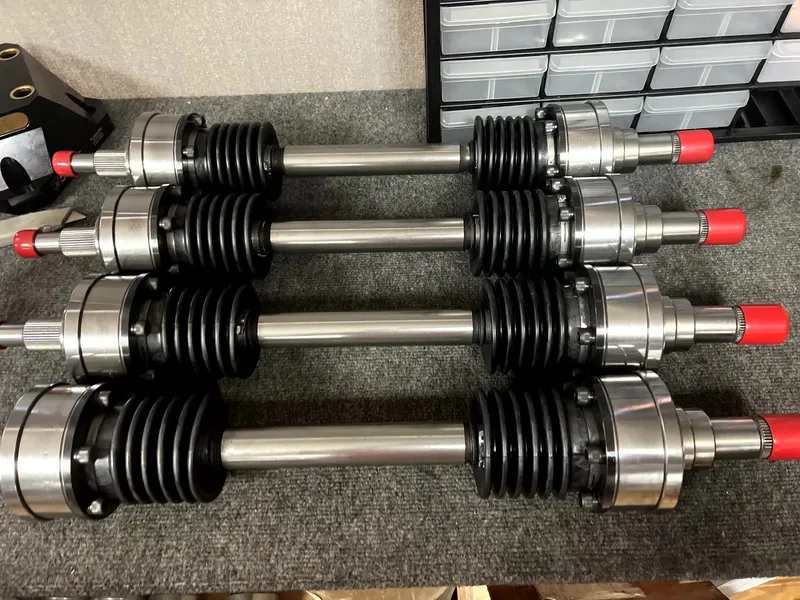

- M3P Upgraded CV Joints

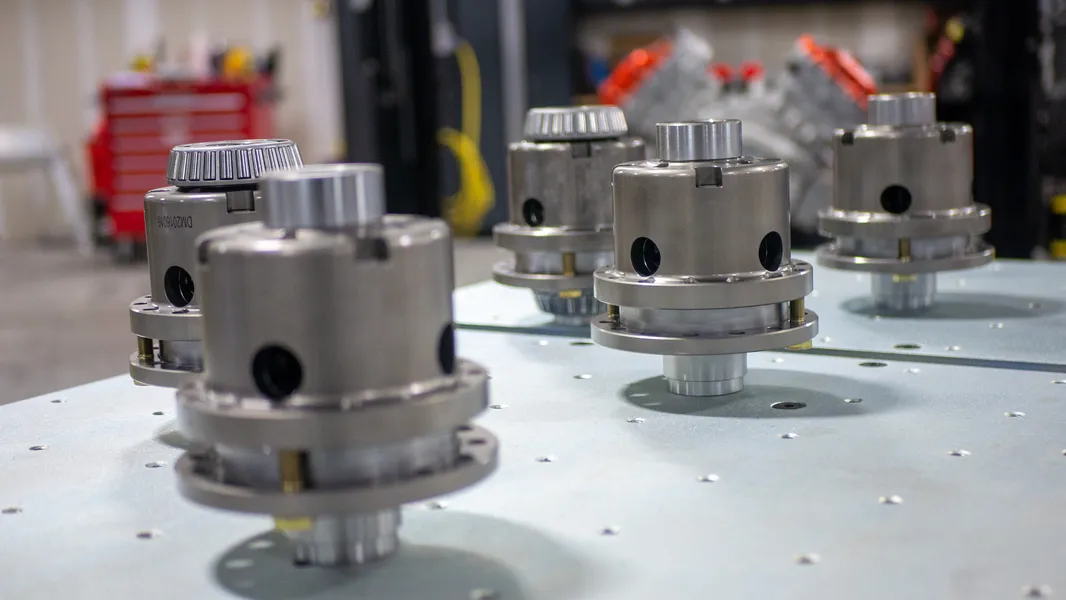

- Billet LSD Differential
- Ring & Pinion Setup
- Motul Racing Gear Oil
- New Differential Bearings
- New Axle Seals
Compare All Packages
Optional Upgrades
Enhance your M1R package with these premium optional upgrades for maximum performance and safety.

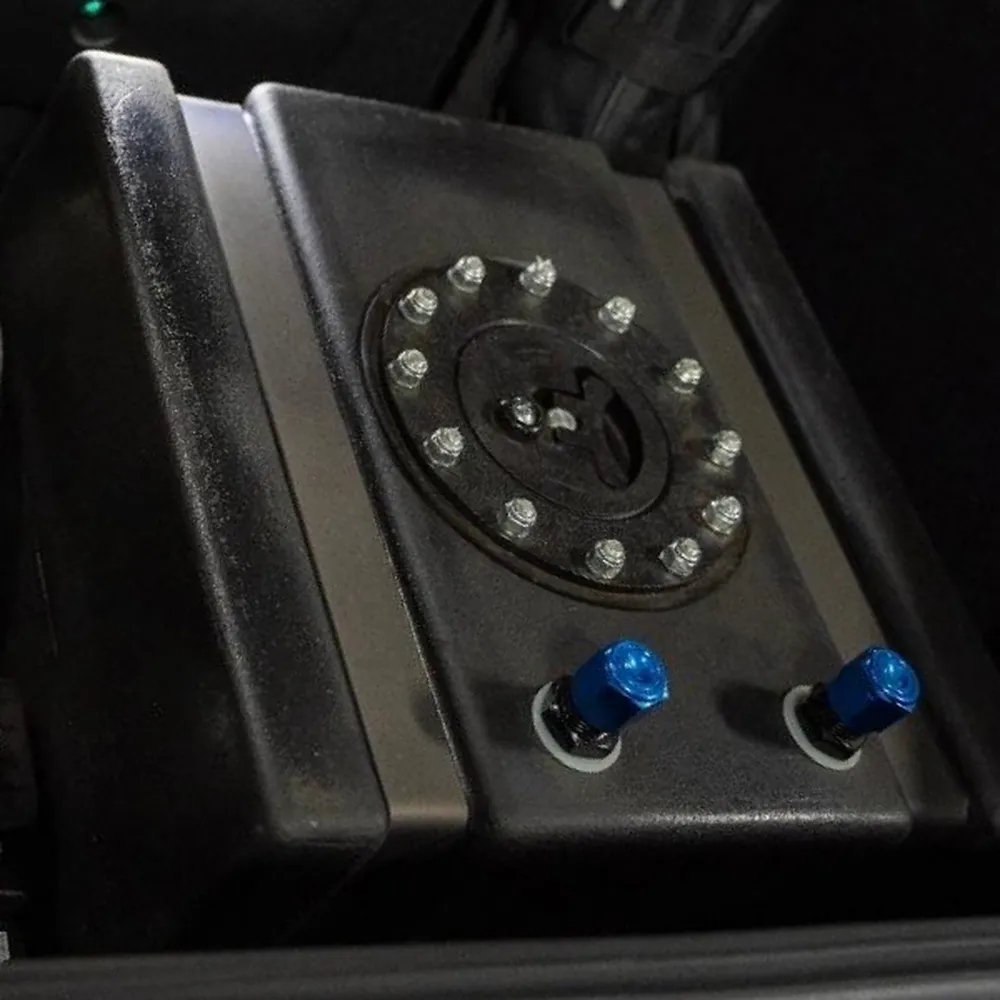

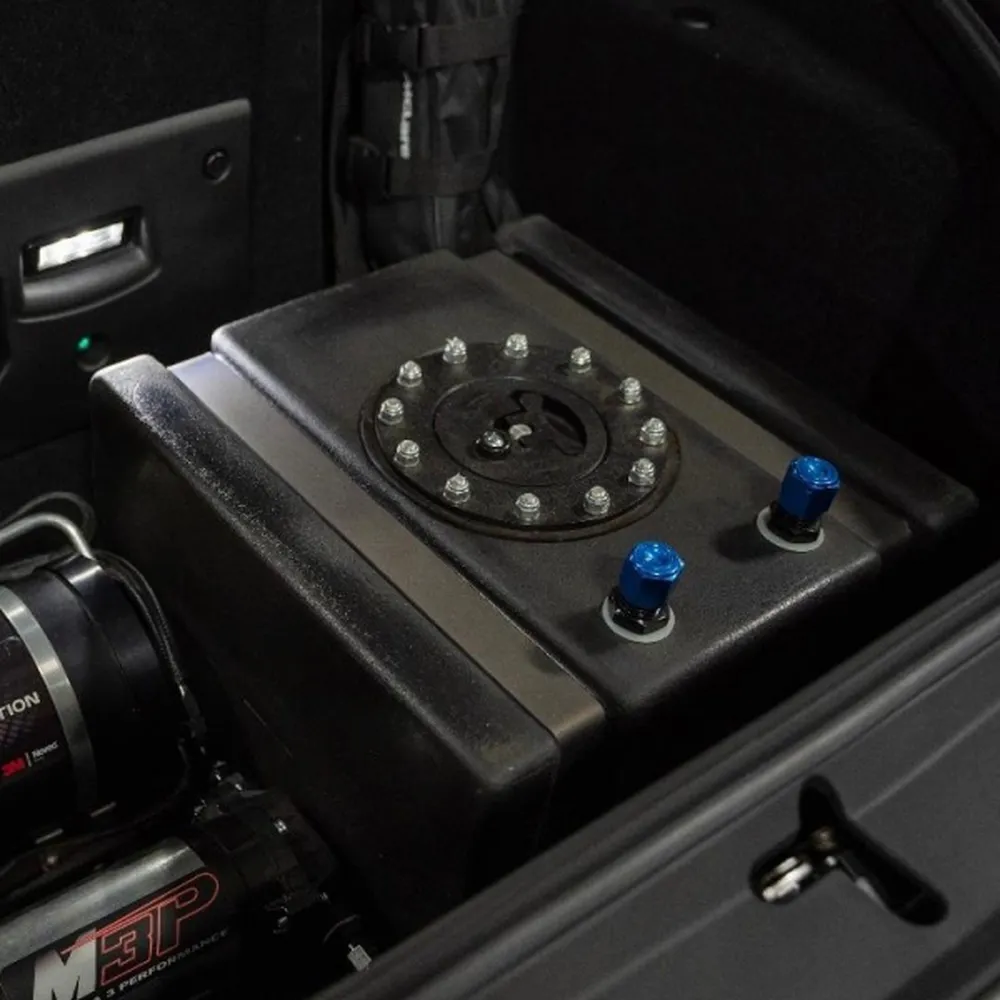

Water/Methanol injection system

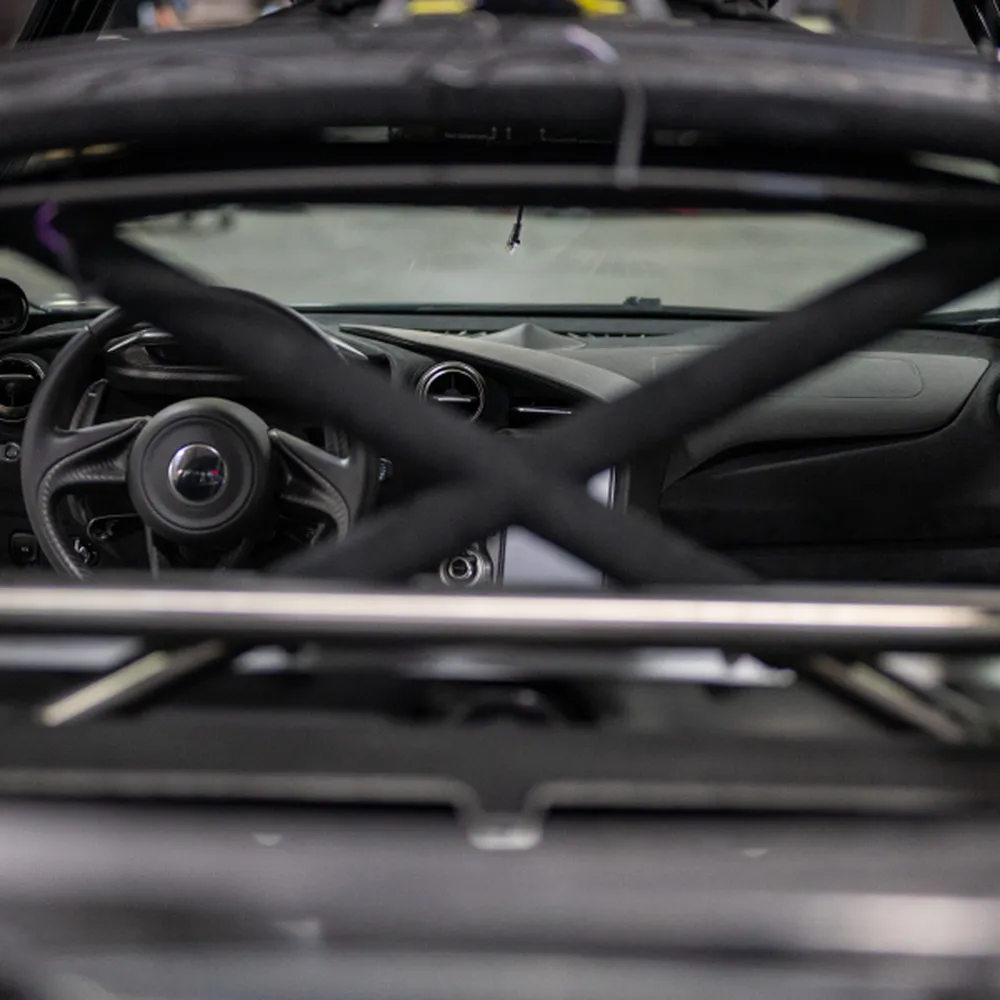

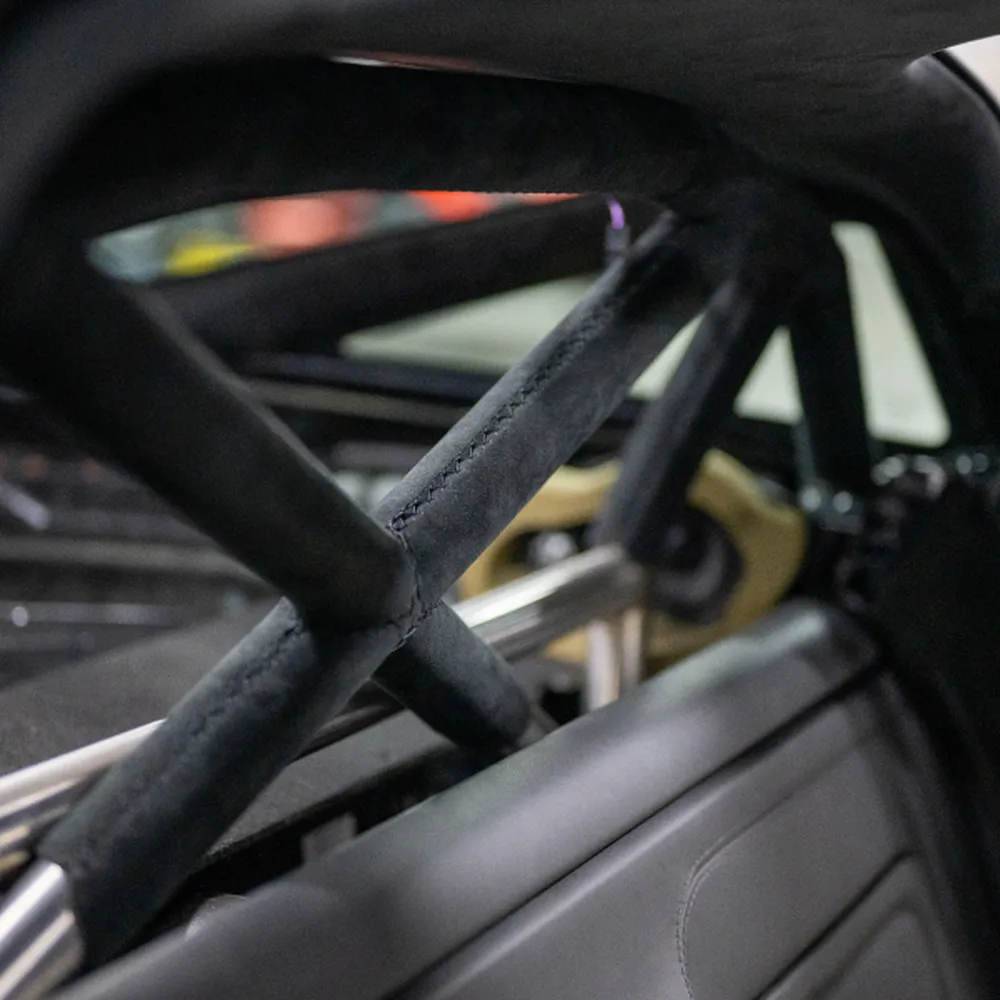

Titanium M3P 4 Point Harness Bar

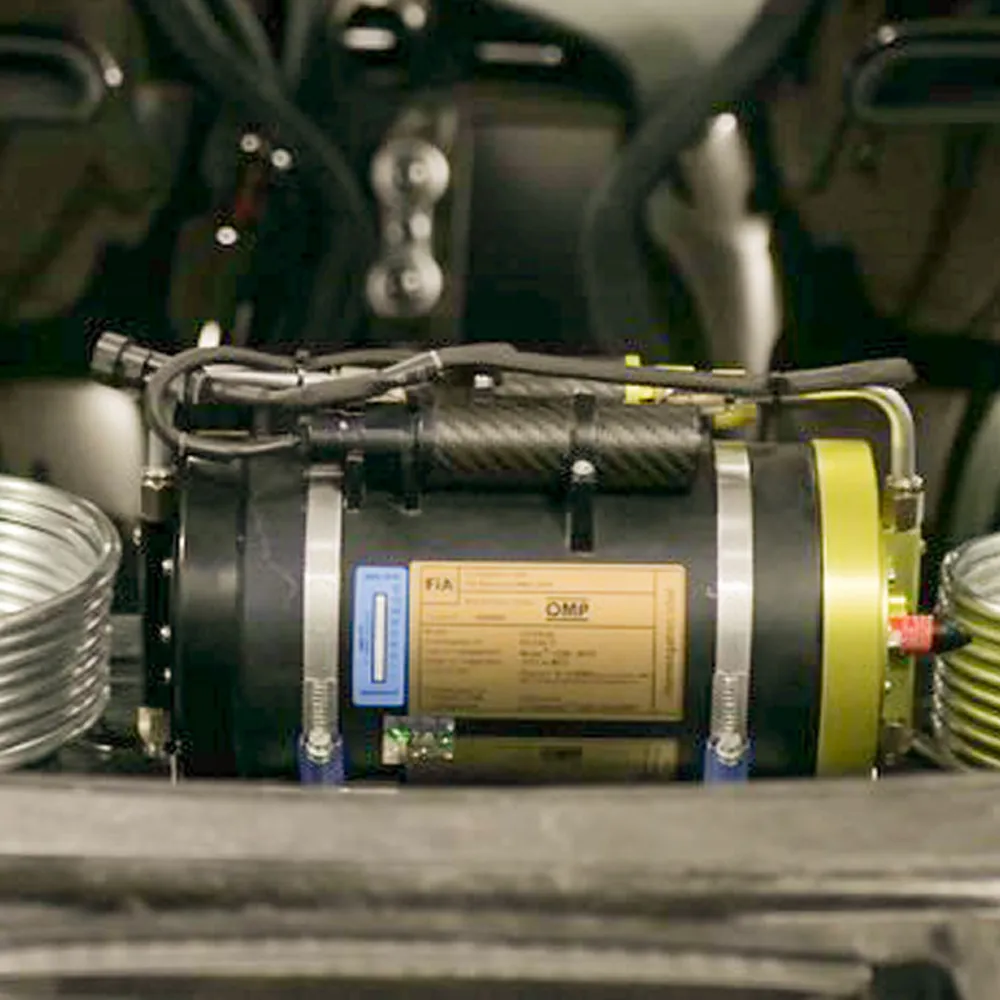

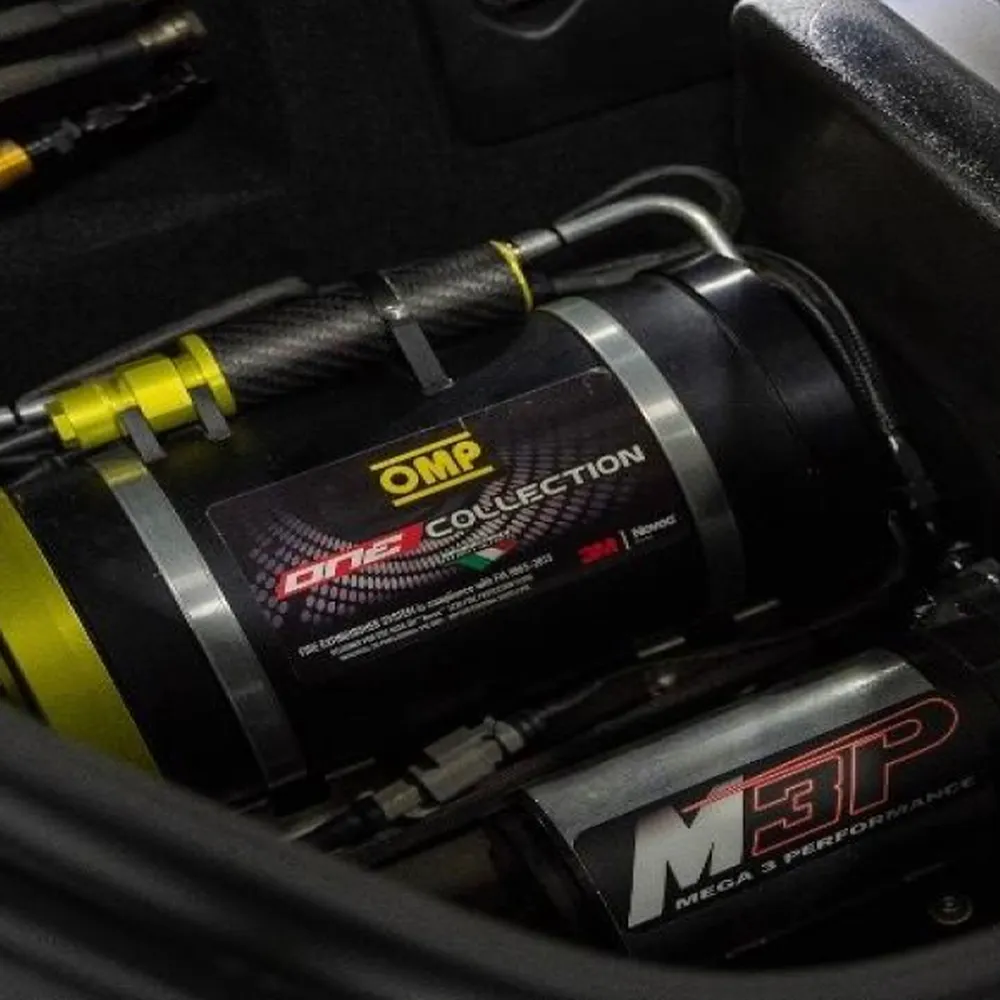

Engine and Cockpit Fire Suppression System

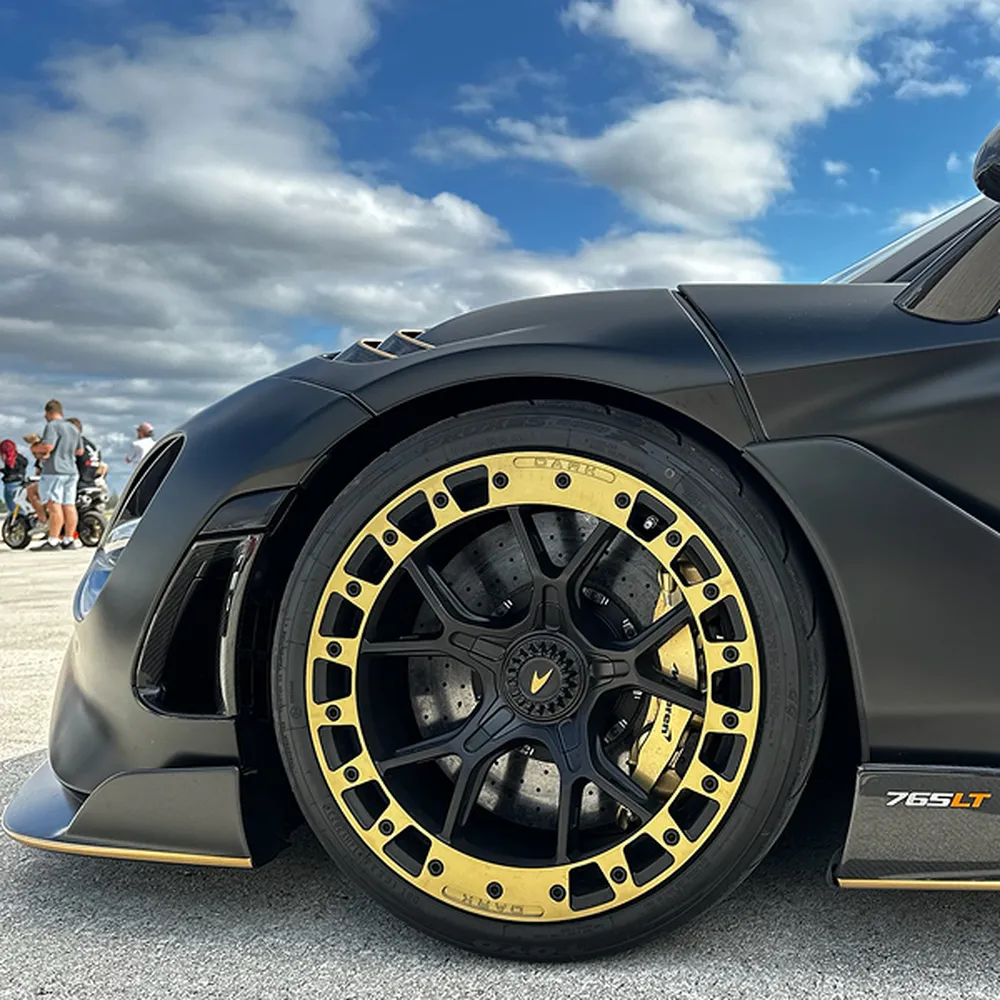

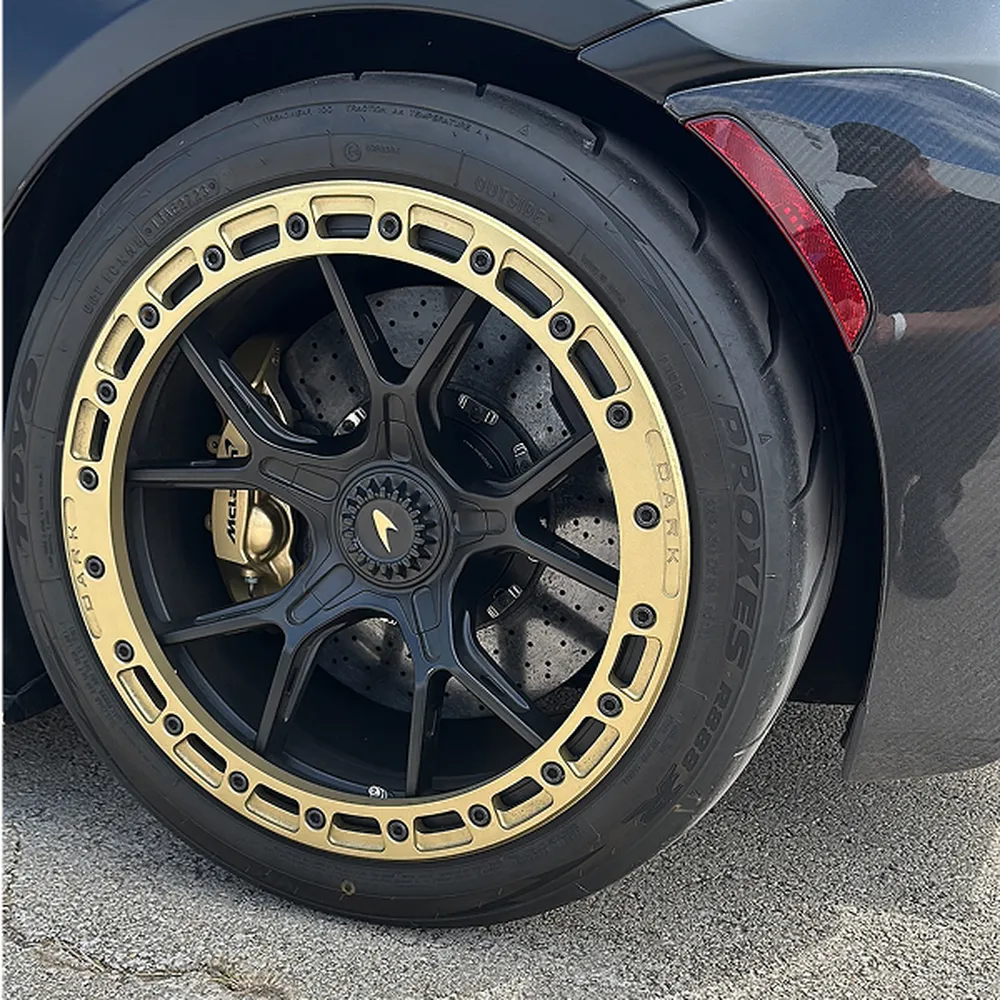

19” Competition Forged Monoblock wheel set (DARK Comp Wheels)

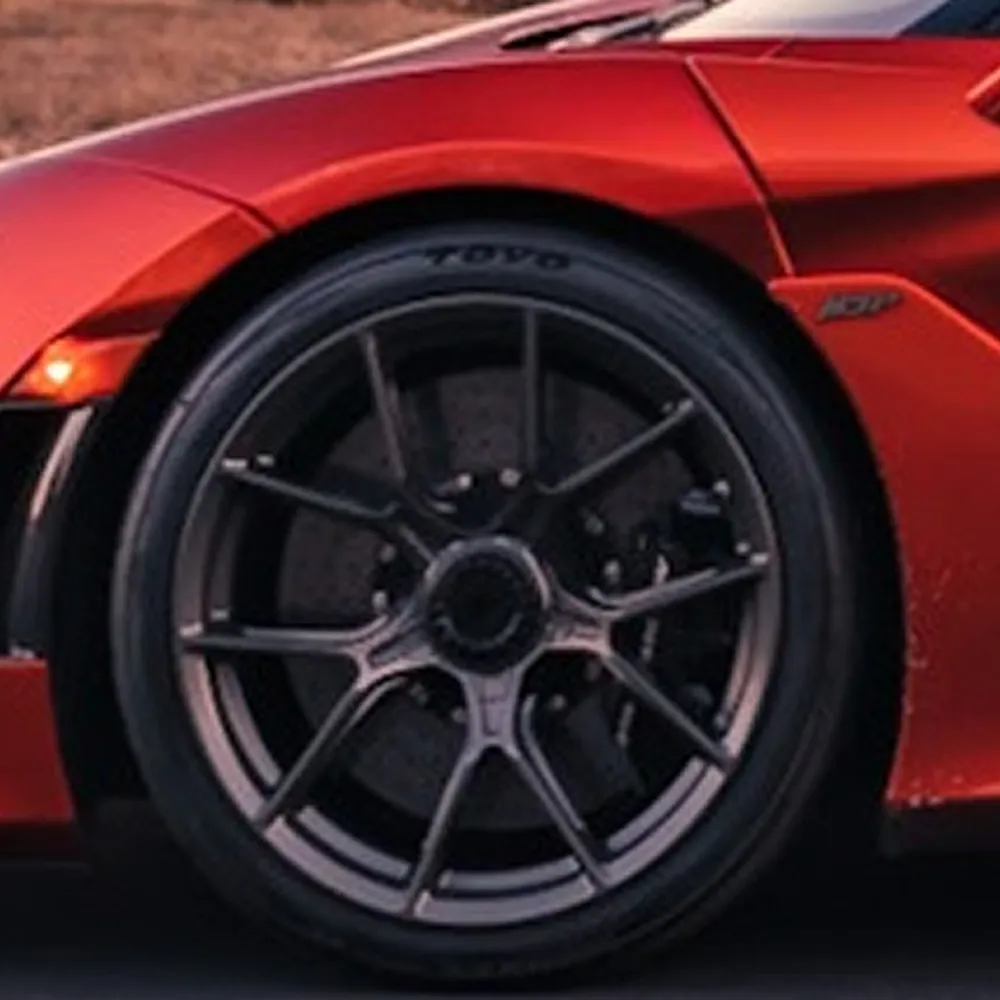

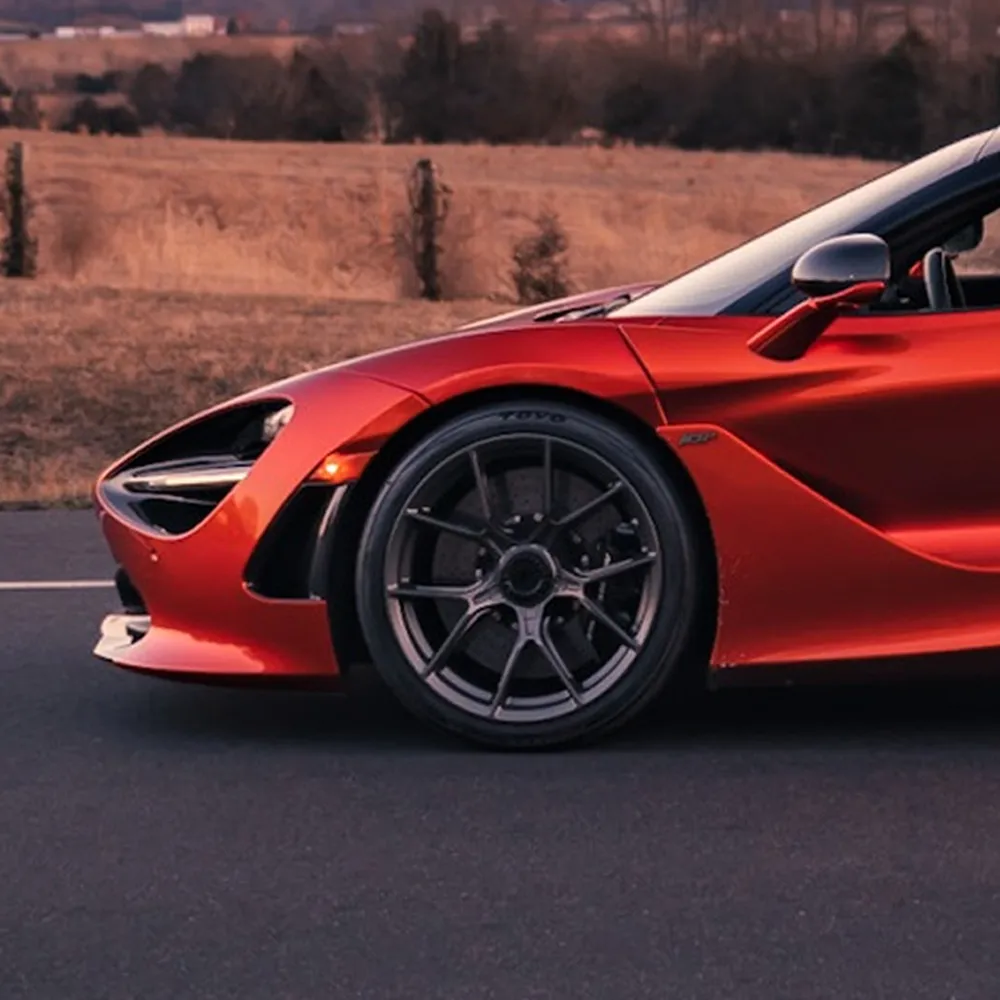

19”-21” Forged Monoblock and multi-piece wheel sets (DARK Comp Wheels)
Compare All Packages
Frequently Asked Questions
Get expert answers to common questions.
All our M3P transmission and driveline parts are designed, engineered, and manufactured in the USA. We have invested heavily in our driveline offering to ensure maximum reliability and performance for high-horsepower McLaren applications.
All of our calibrations are written and developed in-house and not outsourced. Our calibrator is owner/engineer Safa, who has been tuning for 15 years and is currently the only person in the world to unlock full control of the McLaren TCU. Safa's expertise extends to developing calibrations for the TCU and CPC controller for Mercedes platforms, plus ECU and TCU tuning for many of today's popular high performance European cars.
We maintain inventory of our engine and M3P driveline parts, which enables us to complete McLaren builds within 3-4 months. This timeline could be subject to change based on volume increases, which would be clearly disclosed at the time of build slot reservation.
The McLaren TCU tuning solution is exclusively available for our client builds only. The TCU calibration is a critical component that works in conjunction with our ECU tuning to achieve the full power potential and driveability in our comprehensive powertrain programs.
Absolutely! We provide a comprehensive 2-year/24,000-mile powertrain limited warranty with all our builds. Our confidence in the quality and reliability of our work allows us to offer warranty coverage that exceeds what any other McLaren tuning specialist provides.
Our performance packages deliver significant power increases: M1R up to 1400HP, M2R up to 1550HP, and M3R up to 1700HP. Each package includes full engine and transaxle builds, custom 3D printed parts, Syvecs ECU with map switching, and comprehensive TCU/CCU tuning.
Yes, we specialize in high-performance tuning for McLaren, Mercedes-AMG, Ferrari, Lamborghini, Porsche, and other exotic vehicles. Our expertise covers ECU tuning, TCU optimization, and comprehensive powertrain upgrades for various supercar platforms.
Ready to Transform Your McLaren?
Contact our performance specialists to discuss your M1R package build and schedule your installation.
